Rising nearly 900 feet above the Colorado River, the Mike O’Callaghan-Pat Tillman Memorial Bridge—better known during its construction as the Hoover Dam Bypass Bridge—stands as one of the most ambitious engineering feats of the early 21st century. Built between 2005 and 2010, this monumental structure was designed to alleviate the traffic congestion and safety concerns plaguing the original U.S. Route 93 crossing over the Hoover Dam. The bridge, a concrete-steel composite arch spanning the Black Canyon, was a testament to human ingenuity, overcoming extreme environmental challenges and logistical hurdles. This blog post takes you back to the construction years, exploring the vision, challenges, and triumphs of building what would become North America’s longest single-span concrete arch bridge.
The Need for a Bypass
The Hoover Dam, completed in 1935, was a marvel of its time, but its two-lane roadway atop the dam was never meant to handle modern traffic volumes. By the late 20th century, U.S. Route 93, a critical link between Las Vegas and Phoenix, saw up to 17,000 vehicles daily, causing frequent congestion, accidents, and delays. The narrow, winding road, with hairpin turns and poor sightlines, was particularly hazardous, compounded by heavy pedestrian traffic from tourists visiting the dam. Post-9/11 security concerns further restricted truck traffic, diverting over 2,000 trucks daily to a 23-mile detour through Laughlin, Nevada, costing an estimated $30 million annually in fuel and delays.
The idea for a bypass dates back to the 1960s, but it gained urgency in the 1990s. From 1998 to 2001, Arizona, Nevada, and federal agencies collaborated to select a route 1,500 feet downstream of the dam, crossing the Colorado River’s Black Canyon. The project, encompassing 3.5 miles of new roadway and the signature bridge, aimed to improve safety, reduce travel time, and protect the dam—a national historic landmark—from potential threats. Construction of the bridge approaches began in 2003, with the bridge itself breaking ground in February 2005.
Designing a Modern Wonder
The Hoover Dam Bypass Bridge, designed by a team led by T.Y. Lin International with support from HDR and Jacobs Engineering, was a groundbreaking project. It was the first concrete-steel composite arch bridge in the United States, featuring the widest concrete arch in the Western Hemisphere. The twin-ribbed concrete arch, spanning 1,060 feet, supported a 1,900-foot-long, four-lane deck soaring 890 feet above the Colorado River—making it the second-highest bridge in the U.S. The composite design, with concrete arches and columns paired with a steel roadway deck, balanced cost, construction speed, and aesthetic harmony with the iconic Hoover Dam.
The Black Canyon presented formidable challenges: steep cliffs, 800-foot drops, temperatures exceeding 100°F, and winds up to 70 mph. The design accounted for seismic risks, using a probabilistic site hazards analysis for a 1,000-year earthquake event, and incorporated expansion joints to handle thermal and vehicular stresses. Sustainability measures, like unpainted concrete and drainage systems to protect the Colorado River’s water quality, ensured long-term durability and minimal environmental impact.
Construction: Conquering the Canyon
Building the bridge was a saga of engineering daring and resilience. The project, managed by the Federal Highway Administration with contractors like Obayashi Corporation and PSM Construction USA, required innovative techniques to navigate the canyon’s harsh terrain. Initial access was a feat in itself—workers used hand tools and small cranes to carve a “toehold” into the Nevada cliff, later scaling up with larger equipment. Two 2,500-foot cableways, suspended from 330-foot towers, transported workers and up to 50 tons of materials across the canyon, a system likened to an “Erector Set fantasy.”

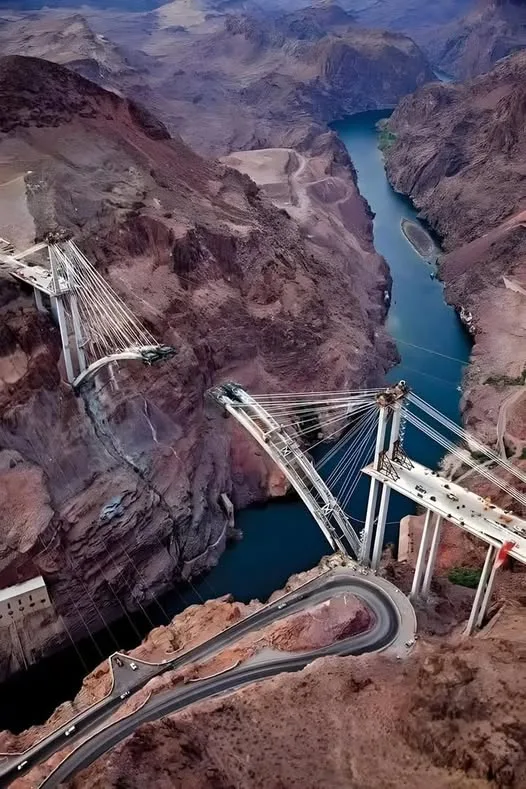

The twin concrete arches were cast segment by segment from both sides of the canyon, using a stayed-cantilever method with temporary cable stays for support. Precision was critical: an automatic surveying system ensured the arches aligned within ¾ of an inch when they met in August 2009, a remarkable achievement given the 890-foot drop and windy conditions. Concrete, poured at night to combat heat, was cooled with liquid nitrogen-filled tubes to prevent cracking. The project used 30,000 cubic yards of concrete and 16 million pounds of steel, with precast columns—some the tallest in the world—erected to support the deck.
The approaches were equally complex. The Nevada side, built by Edward Kraemer & Sons, included five bridges and a 2.2-mile roadway with 1.6 million cubic yards of excavated rock. The Arizona approach, constructed by R.E. Monks and Vastco, featured a 900-foot bridge to navigate rugged terrain. Despite the $240 million budget ($114 million for the bridge), the project faced setbacks: a cableway collapse in 2006 due to 55-mph winds delayed construction by two years, and in 2008, worker Sherman Jones tragically died when a jack punctured his chest.
Milestones and Triumphs
By mid-2009, the bridge’s arches were nearly complete, with the two halves joining on August 10, 2009, leaving just a six-foot gap. By April 2010, steel girders were in place, allowing workers to walk from Arizona to Nevada across the structure. The deck was paved by July, and high-line cranes were removed as the project neared completion. On October 14, 2010, U.S. Transportation Secretary Ray LaHood dedicated the bridge, named for Nevada Governor Mike O’Callaghan and Arizona’s Pat Tillman, a football player and soldier killed in Afghanistan. It opened to traffic on October 19, 2010, ahead of schedule and within budget.
The bridge transformed travel, cutting the Las Vegas-Phoenix route from 6.3 miles and up to 30 minutes across the dam to 5.5 miles and six minutes. It restored a critical NAFTA trade route, saving truckers time and fuel, and enhanced safety by rerouting traffic from the dam’s congested road. A pedestrian walkway, accessible via a Nevada-side parking lot, offered stunning views of the Hoover Dam, making the bridge a tourist attraction in its own right.
A Legacy of Innovation
The Hoover Dam Bypass Bridge, completed in 2010, was more than a solution to traffic woes—it was a symbol of American engineering prowess. Its construction, documented in sources like the Las Vegas Sun and Engineering News-Record, overcame extreme conditions and setbacks to create a structure that rivals the Hoover Dam’s grandeur. The bridge’s 2012 Outstanding Civil Engineering Achievement Award from the American Society of Civil Engineers underscores its significance.
Though the construction years were fraught with challenges, from rockfalls to high winds, the project’s success highlighted the dedication of over 1,200 workers and 300 engineers. Today, the Mike O’Callaghan-Pat TillmanMemorial Bridge stands as a testament to what can be achieved when vision, technology, and grit converge. For those visiting, the pedestrian trail offers a chance to marvel at the dam from a new perspective, a fitting tribute to a project that, like the dam before it, redefined what’s possible.
