In the world of traditional Japanese carpentry, where artistry meets engineering, the butterfly joint—a sophisticated variation of the dovetail key—stands as a testament to human ingenuity. Known as kumiki or tsugite in Japanese, this intricate joint locks large timbers together without a single nail or screw, relying solely on precision and geometry. Used for centuries in temples, shrines, and homes across Japan, the butterfly joint is a marvel of form and function, blending strength with subtle beauty. Let’s explore this ancient craft, its techniques, and why it continues to captivate woodworkers and architects today.
What Is the Butterfly Joint?

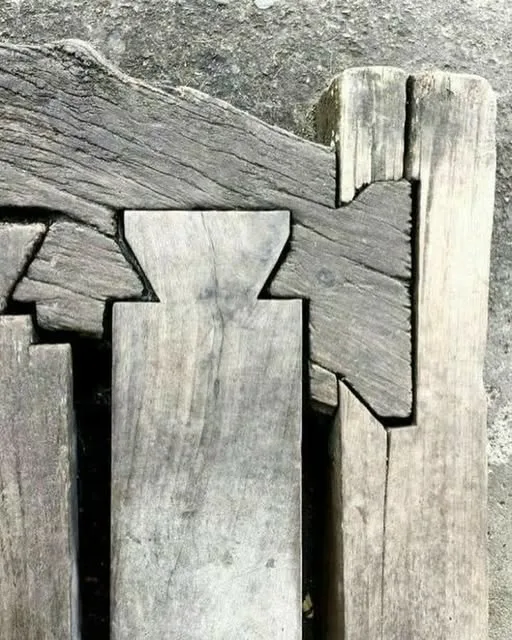

The butterfly joint, often called a dovetail key or inlaid key joint, is a woodworking technique where a bowtie-shaped or dovetail-shaped piece of wood (the key) is inlaid into matching recesses cut across two timbers. Shaped like an hourglass or butterfly, with wider ends and a narrower middle, the key creates a mechanical lock that prevents the timbers from pulling apart. In Japanese carpentry, or sashimono, this joint is used to join beams end-to-end or to reinforce wide planks against splitting, particularly in large-scale structures like temples or bridges.
Unlike Western dovetail joints, which are common at corners, the Japanese butterfly joint is typically inlaid along the face or seam of timbers. Its flush, seamless finish hides the complexity of the joint, embodying the Japanese aesthetic of wabi-sabi—finding beauty in simplicity and subtlety.
Variations of the Butterfly Joint
Japanese carpentry is renowned for its diverse and intricate joinery, and the butterfly joint comes in several specialized forms, each tailored to specific structural needs:
-
Kanawa Tsugi (Dovetail Key Joint): The classic butterfly joint, where a dovetail-shaped key is inlaid across the seam of two timbers. Crafted from a contrasting hardwood like oak or zelkova, the key locks the pieces together with precision, relying on friction and shape rather than fasteners.
-
Okuriari Tsugi (Sliding Dovetail Key): A dynamic variation where the key slides into a tapered channel across the joint. Driven in tightly, it creates a secure bond, ideal for beams under tension.
-
Hako Ari Tsugi (Boxed Dovetail Key): Used in massive temple timbers, this joint features a rectangular key with dovetail projections, offering both strength and a polished, nearly invisible finish.
-
Kumiki Joints: Some complex interlocking systems incorporate butterfly-like shapes, creating puzzle-like connections that hold multiple timbers together without adhesives.
Each variation showcases the meticulous craftsmanship that defines Japanese woodworking, where every joint is a balance of utility and art.
Crafting the Butterfly Joint: A Master’s Precision
Creating a butterfly joint for large timbers is a labor-intensive process that demands skill and patience. Japanese carpenters, or daiku, use traditional tools and techniques honed over generations. Here’s how it’s done:
-
Marking and Measuring: Using a sumitsubo (ink line) and sashigane (carpenter’s square), the woodworker marks the joint’s location with exacting precision. A kigata (template) ensures the key’s shape is consistent across both timbers.
-
Cutting the Recess: The recesses for the butterfly key are carved using nomi (Japanese chisels) and a genno (hammer). The cuts are angled to match the dovetail’s taper, requiring tolerances of less than a millimeter to ensure a tight fit. For large beams, this step can involve removing significant material without compromising the timber’s strength.
-
Shaping the Key: The butterfly key is crafted from a dense hardwood to withstand stress. Its hourglass shape is carefully cut to fit the recesses, with slight tapering to create a wedged, secure fit when inserted.
-
Assembly: The key is driven into the recesses with a mallet, locking the timbers together. In traditional construction, the joint is often left dry (without glue) to allow for seasonal wood movement, a critical consideration in Japan’s humid climate.
This process, often performed entirely by hand, reflects the carpenter’s deep understanding of wood’s properties and the forces it must endure.
Why It Matters: Strength, Beauty, and Harmony
The butterfly joint is more than a functional connector—it’s a philosophy. By eschewing nails or screws, Japanese carpenters create structures that flex with environmental changes, resisting earthquakes and weathering. This is especially vital in Japan, where traditional temples and shrines, like those in Kyoto or Nara, have stood for centuries thanks to such joinery.
Aesthetically, the butterfly joint embodies wabi-sabi, hiding its complexity beneath a flush, serene surface. The use of contrasting wood for the key adds a subtle decorative element, turning a structural necessity into a work of art. In massive timbers, the joint serves multiple purposes:
-
Reinforcing Planks: Butterfly keys prevent wide boards or beams from splitting by locking potential cracks together.
-
Joining Beams: They strengthen end-to-end connections, distributing tensile forces across the seam.
-
Visual Elegance: The inlaid key, often in a contrasting wood, adds a understated beauty to the structure.
A Legacy in Modern Woodworking
The butterfly joint’s elegance and durability have made it a favorite among modern woodworkers and designers. Furniture makers use it in tables and benches to stabilize wide slabs, while architects incorporate it into timber-frame homes or even concrete formwork. However, the skill required to craft these joints by hand is increasingly rare, as modern tools and fasteners dominate contemporary construction.
Thankfully, organizations like the Kezurou-kai (Japanese woodworking society) and traditional carpentry schools are working to preserve this craft. By passing down techniques, they ensure that the butterfly joint—and the artistry behind it—remains alive.
A Timeless Craft
The Japanese butterfly joint is a masterpiece of woodworking, blending precision, strength, and beauty in a single, seamless connection. Its ability to lock massive timbers without metal fasteners speaks to the ingenuity of Japan’s daiku, who saw wood not just as material but as a partner in creation. From ancient temples to modern furniture, this joint carries a legacy of craftsmanship that continues to inspire. The next time you admire a piece of Japanese architecture or furniture, look closely—you might just spot the subtle silhouette of a butterfly, holding history together with quiet grace.
